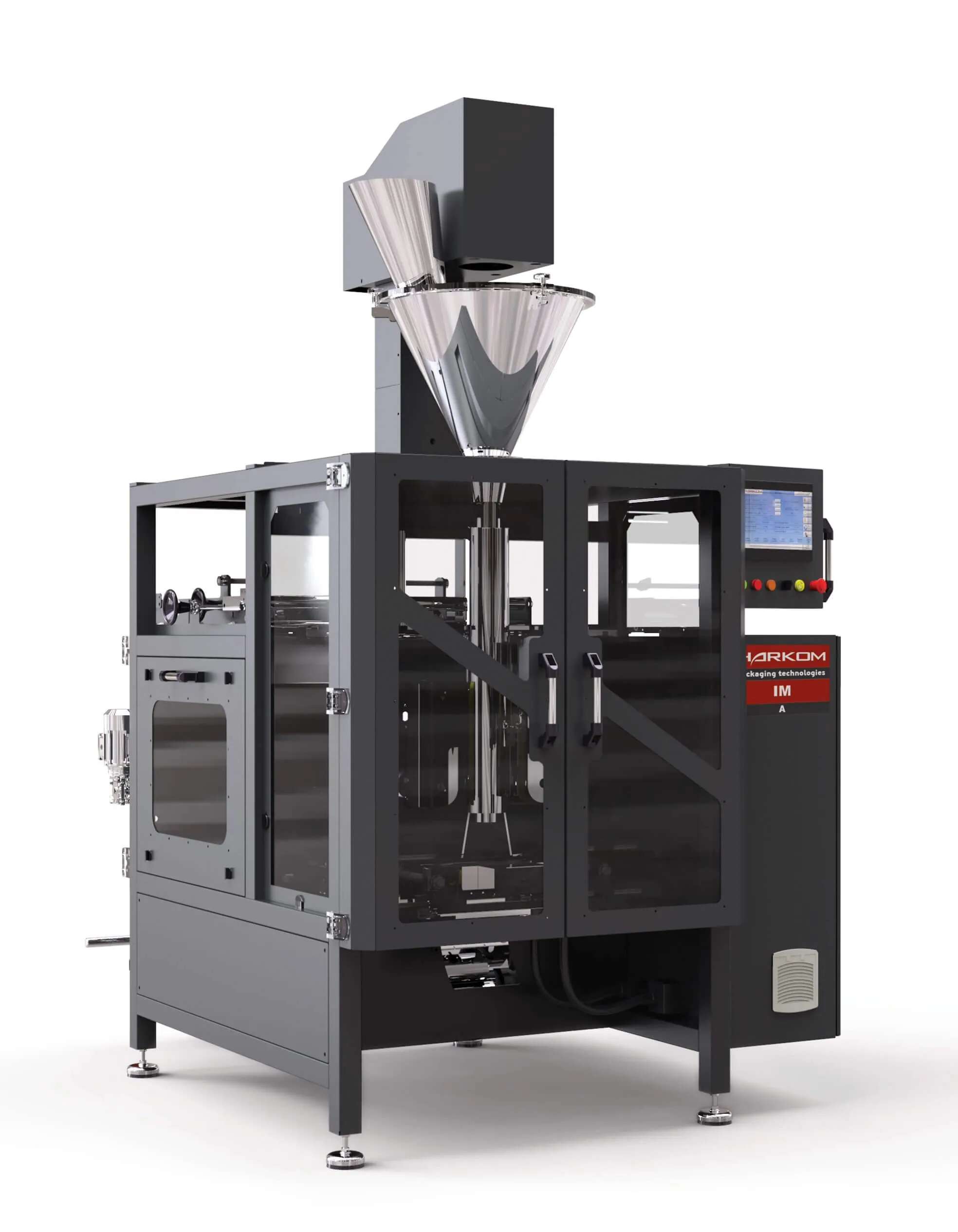

IM-A Packaging Machine With Auger Filler

The IM-A Auger Filling Machine is a highly efficient and rapid Packaging Machine in the packaging field. Let’s take a closer look at the features of the IM-A Screw Packaging Machine, a powerful Packaging Machine that enhances packaging efficiency.

IM-A Screw Packaging Machine

With the advancement of technology, human lives have become more convenient. Many business locations are optimized through technological progress, saving both energy and time. This time-saving machine, the IM-A Auger Filling Machine, plays a crucial role in packaging faster and more efficiently. It is designed to package powder and similar products, with the auger filling machine providing fast and precise filling. The product weight can be adjusted by the number of turns of the filling screw. Screw sizes may vary depending on the product type and target filling quantity. All surfaces in contact with the product are made of AISI 304 stainless steel, making it suitable for food packaging. This Packaging Machine ensures safe and precise handling of your products.

The IM-A Screw Packaging Machine also allows for quick changes of the package type, thanks to the easy interchangeable collar set. The adjustable mark sensor ensures precise package length adjustment. Automatic stopping is triggered by printer errors, preventing unprinted or incorrect packaging. This auger filling machine is equipped with an AC motor-driven film sliding unit. The servo motor-driven horizontal jaw welding and cutting unit improve the machine’s efficiency, allowing for cold or hot welding techniques to be applied depending on the packaging type.

Film tension is continuously monitored, and coil centering is done with precise edge control. The IM-A Screw Packaging Machine complies with CE standards for assembly construction. With multiple language options and a user-friendly touch screen, adjusting settings has never been easier. With this screw packing machine and Packaging Machine, you can package products quickly and efficiently. The IM-A Auger Filling Machine is one of the most preferred Packaging Machine solutions in the industry.

Optional Equipment:

  • Nitrogen filling unit
  • Screw feeding unit
  • Output Conveyor
  • Vacuum belt
  • Euro hole / Strap Hole
  • Printer with barcode and date writing

Contact us for different types of packages, products, and capacities. The IM-A Auger Filling Machine offers fast and efficient Packaging Machine solutions.

IM-A Packaging Machine With Auger Filler

Harkom Packaging Machine Technical Specifications

Width IM290 1560mm / IM400 1720mm
Length IM290 2050mm / IM400 2050mm
Height IM290 3000mm / IM400 3240mm
Weight IM290 950kg / IM400 1000kg
Production Speed (Number/Min) 75
Package Length IM290 60mm-350mm / IM400 60mm-700mm
Package Width IM290 60mm-270mm / IM400 60mm-380mm
Film Coil Diameter 300mm
Film Coil Width IM290 130mm-580mm / IM400 130mm-830mm
Power Consumption 7.5 Kw
Operating Voltage 380V 3 Phase 50Hz
Air Consumption 250 Lt/Dakika - Minute
Air Pressure (min.)

IM-A Packaging Machine With Auger Filler types of packaging it can fill

IM-A Packaging Machine With Auger Filler products it can fill
